pLM-BLAST

2.1 Substitution matrix

The embedding of a sequence is given by a matrix of size , where n and m denote the number of residues and the size of the embedding, respectively. To obtain standardized and comparable results, the values for each residue embedding are normalized by dividing them by the Euclidean norm of the row

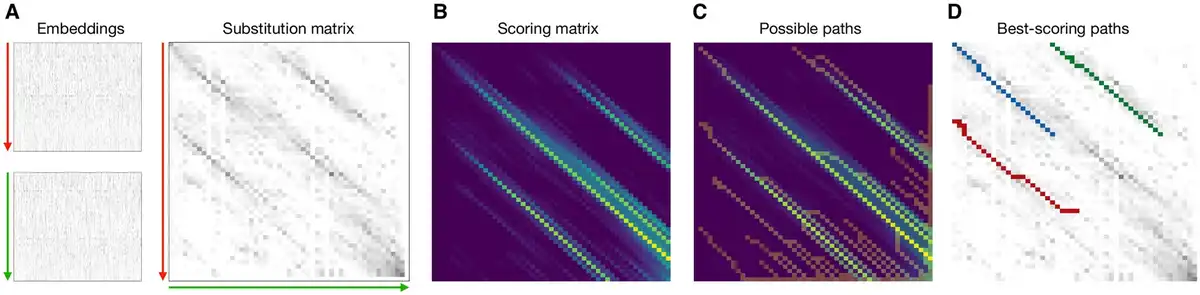

where denotes the matrix element in the i-th row and j-th column, and is the normalization operator. In pLM-BLAST, a substitution matrix (Fig. 1A) for two sequences and is calculated as

The element of the matrix is in the interval and denotes the embedding similarity of the i-th residue of and the j-th residue of . This is equivalent to calculating the cosine similarity of each pair of residues from and placing them in a 2D array indexed by the residues of each sequence.

2.2 Scoring matrix

To obtain local alignments, a scheme adapted from the Smith-Waterman algorithm is used to create a scoring matrix (Fig. 1B) of size , where the first row and column are filled with zeros and the rest of the matrix is filled using the following procedure:

Unlike the original Smith–Waterman algorithm, pLM-BLAST does not use gap penalties because the values for dissimilar regions are negative or close to zero due to the cosine similarity property. In addition, the above equation does not truncate the values to zero, which results in a more severe penalty for dissimilar regions, thus reducing the total number of potential alignments.

2.3 Traceback procedure

To identify possible matching regions for a given pair of sequences, a traceback procedure is used to traverse the scoring matrix (Fig. 1C). Unlike the SW algorithm, we do not start with the highest value in the scoring matrix, but traverse from all sequence boundaries. Thus, in our approach, the traceback procedure does not produce a single alignment, but multiple candidates for possible alignments. For this purpose, n possible paths P are constructed, starting from the right and bottom edges of the matrix H. The path is a set of coordinates from the matrix , where and N equals .

2.4 Local alignment

Each path generated by the traceback algorithm is scanned for the presence of high-scoring subpaths (i.e. local alignments) using the values of the corresponding region in the substitution matrix. To this end, a moving average with a defined fixed window length is applied to each path and subpaths whose average score is above the sigma threshold are captured. By default, the threshold is set to 2 sigmas, which is defined as two times the average standard deviation of the substitution matrix. Our tests showed that the standard deviation of the substitution matrix tends to be ∼0.075, while the path score for meaningful alignments is an order of magnitude higher. However, increasing ( ) or decreasing ( ) the standard deviation cutoff makes the algorithm more strict or more permissive, respectively.

2.5 Global alignment

In addition to local alignments, pLM-BLAST can also perform global alignments using the Needleman–Wunsch algorithm (Needleman and Wunsch 1970). The original algorithm remains the same except that the similarity matrix is replaced by the embedding-based substitution matrix S and the gap penalty is set to zero.

2.6 Homology benchmark

To evaluate the ability of pLM-BLAST and other methods to detect homology between protein sequences, we constructed two benchmark sets based on the ECOD database (Cheng et al. 2014): first, “hard,” which focuses on difficult cases where the similarity between sequences does not exceed 30%; and second, “easy,” where we test the methods in detecting homology between sequences with 50%–70% similarity.

To construct the “hard” set, the sequences of all ECOD domains (version 20220912), excluding nested domains, with a length of 50–600 amino acids were obtained using the localpdb ECOD plugin (Ludwiczak et al. 2022) and clustered using MMSeqs2 with a sequence identity cutoff of 30% (Steinegger and Söding 2017). The longest sequences were selected as cluster representatives and those belonging to H-groups with less than five members were removed. The final benchmark set was created by randomly selecting five domains from 300 H-groups, i.e. ECOD levels that group together homologous domains with common ancestry. This procedure was designed to select domains from different T-groups; a T-group is a sublevel that groups together homologous domains within an H-group that are topologically similar. As a result, we obtained a set of 1500 ECOD domains from 300 H-groups, none of which shared >30% sequence identity.

For each ECOD domain in the benchmark set, an HMM profile and sequence embedding were calculated using three iterations of HHblits over the UniRef30 database with default settings (Steinegger et al. 2019) and ProtT5 (prot_t5_xl_half_uniref50-enc) (Elnaggar et al. 2022), respectively. The embeddings were compared all-against-all with pLM-BLAST (in local and global mode), TM-Vec, and EBA, while the HMM profiles were compared with HHsearch. Matches between domains of the same H-group were considered true positives, matches between different H-groups belonging to the same X-group (an ECOD classification level that groups H-groups that may be homologous) were considered neutral, and finally matches between different X-groups were considered false positives. For the calculation of precision-recall curves (Fig. 2A), we filled missing data (i.e. pairs for which a given method did not provide a score) with zeros, assuming that the lack of prediction can be considered a negative prediction. In Fig. 2A, the regions of the curves resulting from such a completion procedure have been omitted for clarity (the complete curves are available as Supplementary Fig. S1). We used the HHsearch match probability, the EBA max score, and the raw pLM-BLAST and TM-Vec scores to calculate the plots.

Open multimedia modal

A similar procedure was used to construct the “easy” benchmark set. As with the “hard” set, the ECOD was first clustered using MMSeqs2 with a 70% sequence identity cutoff to remove redundancy. The resulting sequences were then clustered again using a 50% sequence identity cutoff, and those from clusters containing less than seven members or containing members from more than one ECOD H-group were removed. Finally, for each H-group, only the largest MMSeqs2 cluster was retained. As a result, we obtained 1032 ECOD domains grouped into 103 clusters. In the “easy” benchmark, we used a stricter definition of positives and negatives, defining sequence pairs belonging to the same cluster as positives and the rest as negatives.

2.7 Analogy benchmark

To assess the ability of the methods to distinguish homologous from analogous sequences, we used the MALISAM database (Cheng et al. 2008), which collects examples of protein pairs that share similar structural motifs that have evolved convergently. Eighty-nine such cases were obtained from the database website (http://prodata.swmed.edu/malisam/) and processed to define structurally alignable pairs of residues belonging to the analogous motifs. Each pair of sequences was aligned using pLM-BLAST in local and global modes, HHsearch, and EBA, and the resulting aligned pairs were compared with those from the MALISAM database. Based on these comparisons, the total coverage of the analogous motif and the score of the respective alignment were defined for each case (Fig. 2B).

2.8 Alignment quality benchmark

To evaluate the quality of the alignments generated by HHsearch, pLM-BLAST, EBA, and BLAST, we followed a procedure previously described in Remmert et al. (2011). First, we extracted all pairs from the “hard” benchmark set (see above) for which all methods produced an alignment. Then, for each pair, we computed the structural alignment using the USalign tool (Zhang et al. 2022) and discarded those for which the TM score was <0.5, resulting in 444 pairs. The structure-based sequence alignments provided by USalign defined the ground truth against which the alignments of each method were compared. Specifically, we considered the precision, i.e. the fraction of correctly aligned pairs out of all aligned pairs, and the sensitivity, i.e. the fraction of correctly aligned pairs out of all structurally alignable pairs. The precision and sensitivity values were averaged for each method and plotted (Fig. 3). We also attempted to evaluate TM-Vec alignments, but for technical reasons were unable to run the DeepBlast model (Morton et al. 2023) required for alignment generation, but we expect it to perform with an accuracy comparable to other global alignment methods.

Open multimedia modal

2.9 Speed benchmark

To evaluate the speed of pLM-BLAST and other methods, we performed a benchmark using five query sequences (Supplementary File S1) of different lengths and folds to search the ECOD70 database, i.e. the ECOD database filtered to maximum 70% identity with MMseqs2. To generate the HHsearch database, we used HHblits run with three iterations on the UniRef30 database (UniRef database filtered to maximum 30% sequence identity), version 2022_02. The benchmark covered the time needed to prepare a given query (embedding calculation or HHblits search) and to search the database. pLM-BLAST was used with cosine similarity pre-filtering (see the next subsection) with the cutoff set at the 90th percentile. All calculations were performed for a fixed computer specification of a 6-core CPU and a single GPU. The benchmark was run four times for each method and the run times were averaged.

2.10 Cosine similarity prefiltering

Typically, when dealing with embeddings, protein similarity is inferred as the cosine similarity between perprotein embeddings (global representations). This approach is very fast, but suffers from the loss of information stored in the per-residue embeddings (local representations) due to the averaging that occurs when the representation is converted to a fixed-size vector. This loss of information makes it impossible to capture local similarities and significantly reduces the ability to detect distant homology. With this in mind, we have developed a procedure that provides a tradeoff between the use of global and local representations.

For a given pair of sequences (e.g. the query and one of the database sequences), per-residue embeddings are taken and treated as 2D images (Fig. 1A), where one dimension is the sequence length and the other is the embedding size (1024 for ProtT5). We then convolve one embedding with another, where the first dimension of each convolution window is user-defined (30 by default) and the second dimension is fixed and equal to the size of the embedding dimension (1024 for ProtT5). This approach produces a 2D matrix in which each element represents the cosine similarity between each embedding slice of the two sequences. Finally, only if the resulting matrix has a value above the user-specified threshold, the corresponding sequences are passed to the actual pLM-BLAST method.

3.1 Homology detection

To assess the performance of pLM-BLAST in homology detection, we conducted a comparison with state-of-the-art methods such as BLAST and HHsearch, as well as other embedding-based methods (TM-Vec and EBA), using the Evolutionary Classification of Protein Domains (ECOD) database as a reference (Cheng et al. 2014). The ECOD database categorizes protein domains based on their evolutionary relationships and structural similarities and organizes them into families, topologies, homologous groups (H-groups), possibly homologous groups (X-groups), and architectures. To evaluate the ability of each method to reconstruct 300 selected ECOD H-groups, two metrics were used: the precision-recall curve and the ratio of true positives to false positives (as shown in Fig. 2). For this study, we specifically curated the benchmark set to ensure that no pair of sequences exceeded 30% similarity, which led to a particularly challenging dataset that we refer to as the “hard” set.

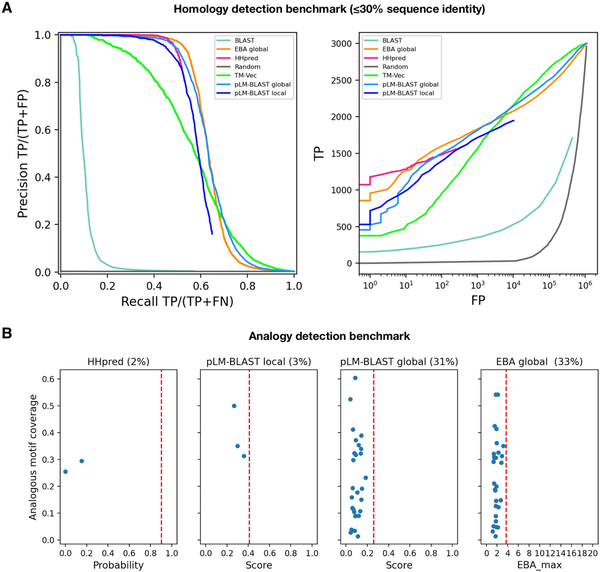

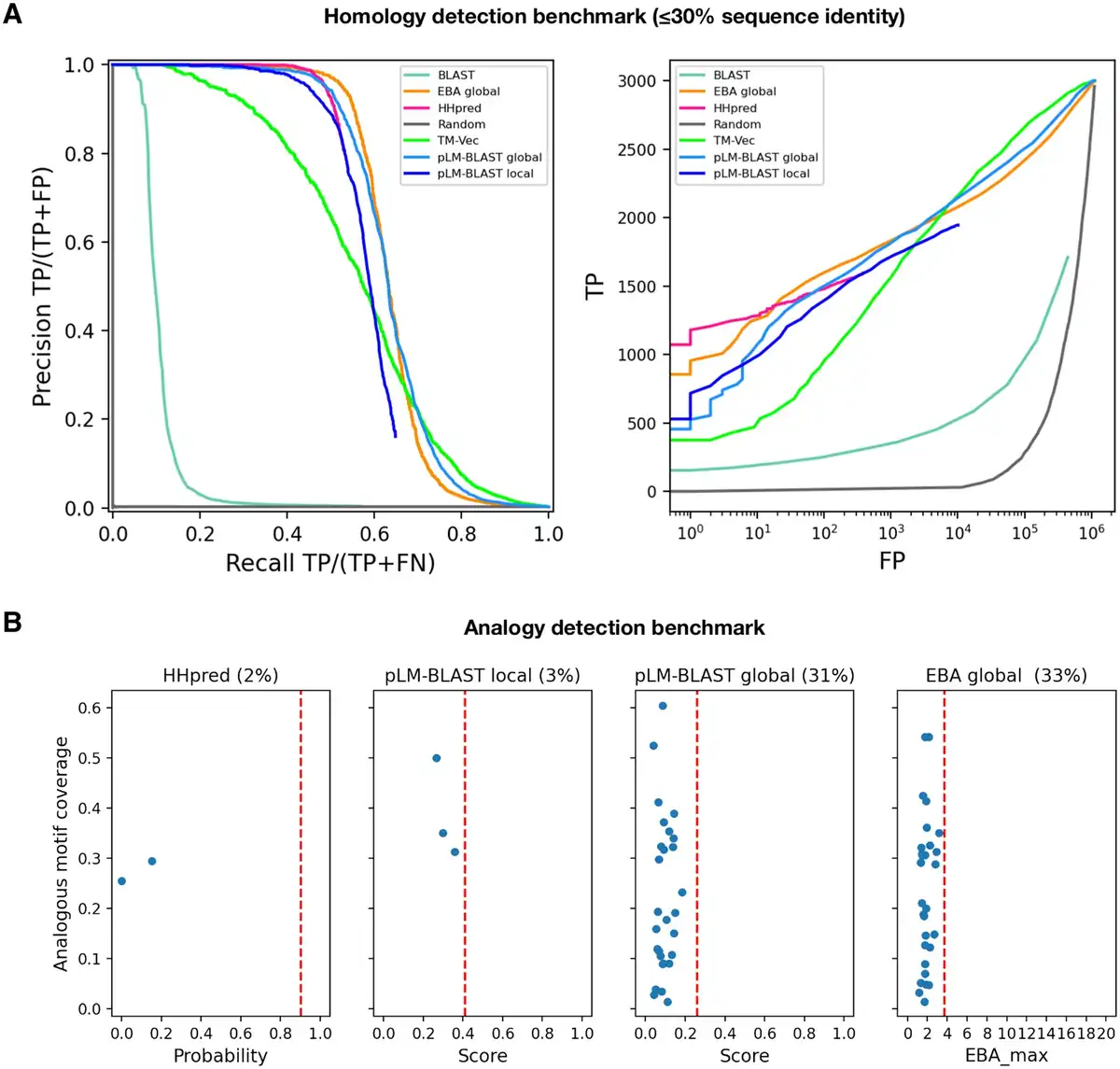

In the “hard” benchmark, EBA performed best, followed by HHsearch and pLM-BLAST, both of which offer similar levels of accuracy; meanwhile, TM-Vec and BLAST underperformed (Fig. 2). The unexpected discrepancy in performance between EBA, TM-Vec, and pLM-BLAST is noteworthy, given they all use the same representations derived from the ProtT5 language model. Unlike the better-performing methods, pLM-BLAST and EBA, which rely solely on unsupervised comparisons of raw representations, TM-Vec, the worst-performing method, uses ProtT5 representations as input for a specially trained end-to-end deep learning model to generate structural alignments. This suggests that the raw embeddings carry sufficient information for homology detection, whereas the structural similarity predicted by TM-Vec serves as a much less informative marker for homology.

The superior performance of EBA among ProtT5-based methods can be attributed to its utilization of an efficient signal enhancement procedure, which facilitates a more effective comparison of representations (Pantolini et al. 2022). It should also be noted that EBA provides only global alignments, which are expected to perform better than local alignments on a benchmark set consisting of domains, rather than full-length sequences. This relationship is evident in the performance comparison between pLM-BLAST running in local and global modes, with the latter consistently outperforming the former.

3.2 Analogy detection

Given the strong performance of pLM-BLAST and EBA in the distant homology detection benchmark, where they achieved accuracies comparable to HHsearch (Fig. 2A), we further tested them for their ability to distinguish homology from analogy (i.e. sequence similarity resulting from convergent evolution rather than common ancestry). To do this, we used 89 cases from the MALISAM database (Cheng et al. 2008), which collects examples of protein motifs that share similar structures due to analogous origins. HHsearch and pLM-BLAST’s local alignments covered the analogous regions in only 2% and 3% of the test cases, respectively, all with scores below those expected for clearly homologous pairs (Fig. 2B). In contrast, pLM-BLAST and EBA global alignments covered analogous regions in 31% and 33% of cases, respectively, but also with scores below those expected for homologous sequences. These results suggest that embedding-based methods, much like HHsearch, are not misled by analogous signals, especially when local alignments are used.

3.3 Alignment quality

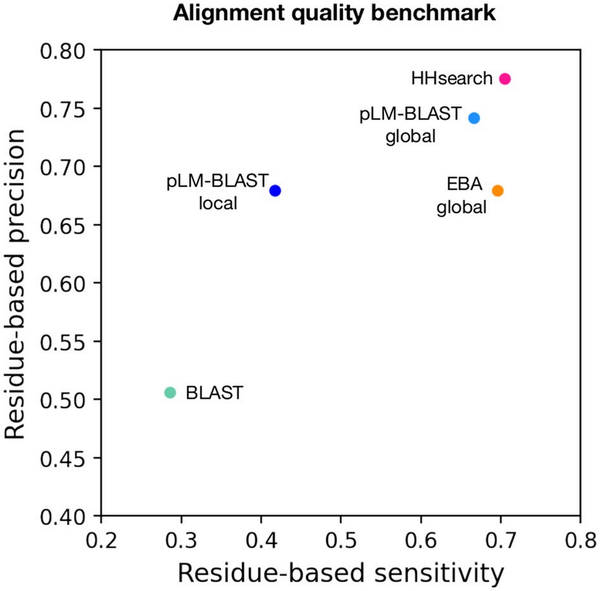

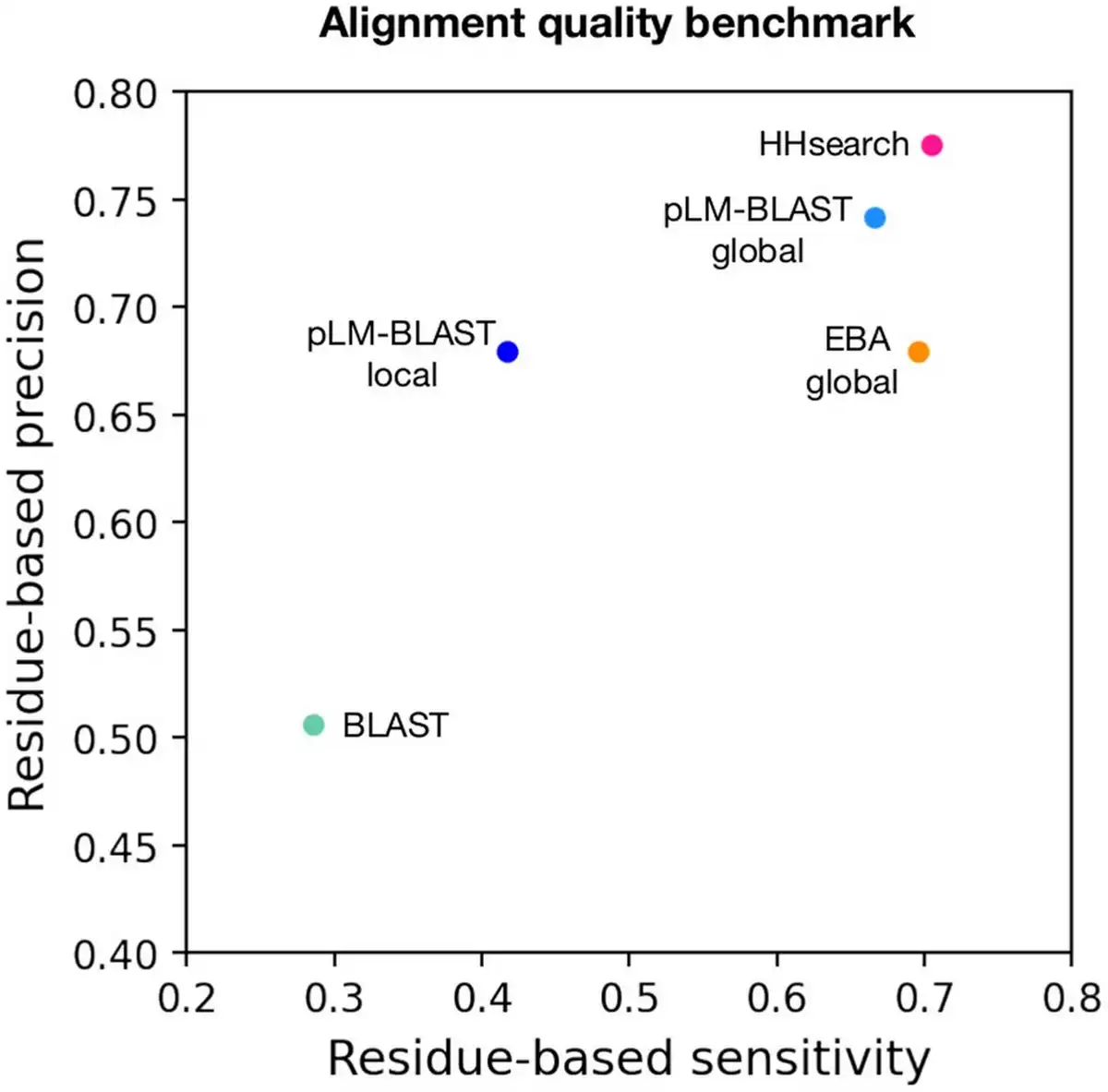

The benchmarks described above focused on the detection of homologous domain pairs based on the provided scores. However, an equally important aspect is the extent to which the generated alignments are correct at the per-residue level. To evaluate this, we used structure-based sequence alignments as a reference point against which the individual sequence-based alignments were compared. For each method, we calculated per-residue precision and sensitivity coefficients (see Section 2.8 for details). The results obtained indicate that pLM-BLAST global, EBA global, and HHsearch all provided very good alignments, with EBA global slightly less effective in terms of precision (Fig. 3). The pLM-BLAST in local mode also provided good precision but lower sensitivity, indicating that its alignments are as precise as those of HHsearch and other embedding-based methods, which run in global mode but shorter, thus not covering all structurally alignable pairs. As we will illustrate later in the text, such short alignments may correspond to ancestral fragments (Alva et al. 2015^, Kolodny et al. 2021) that are shared between different protein folds.

3.4 Comparison of similar sequences

Above, we discussed pLM-BLAST and related methods in the context of detecting homology between highly divergent sequences that share <30% pairwise sequence identity. However, sequences sharing ≥50% identity are also routinely compared in bioinformatics tasks. Bearing this in mind, we considered an additional “easy” benchmark set, where homologous sequences share between 50% and 70% identity (see Section 2.6 for details). This benchmark was also based on domain sequences from the ECOD database, but it aimed to reconstruct clusters defined by MMseqs2 instead of ECOD H-groups

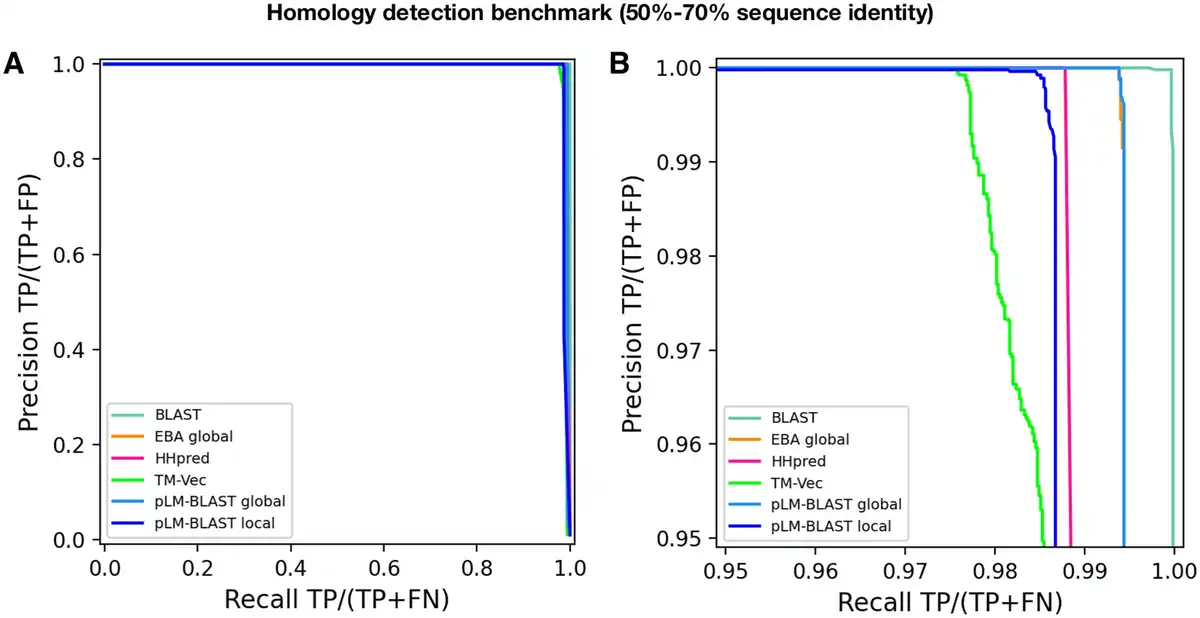

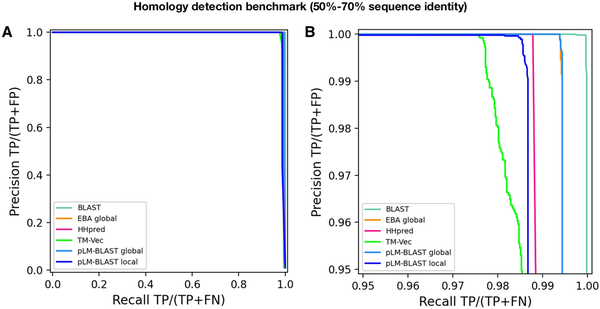

The results obtained indicate that pLM-BLAST and all other benchmarked methods perform almost perfectly in this task (Fig. 4). Only at precision and recall rates >95% can minor differences be observed, with BLAST outperforming the others and TM-Vec demonstrating the lowest accuracy. pLM-BLAST and EBA in global alignment mode perform equally well, closely followed by HHsearch and pLM-BLAST in local mode. The strong performance of pLM-BLAST, EBA, and TM-Vec in this test suggests that embedding-based methods are a viable option for comparing similar sequences and should be considered in the development of new tools for sequence searching and clustering, akin to DIAMOND (Buchfink et al. 2021) or MMseqs2 (Steinegger and Söding 2017).

Open multimedia modal

3.5 Speed benchmark

A critical aspect of large-scale analyses is computational speed. Bearing this in mind, we evaluated the speed of pLM-BLAST, EBA, HHsearch, and TM-Vec while searching the ECOD70 database (over 62 000 records) using five example queries of varying lengths (Supplementary File S1).

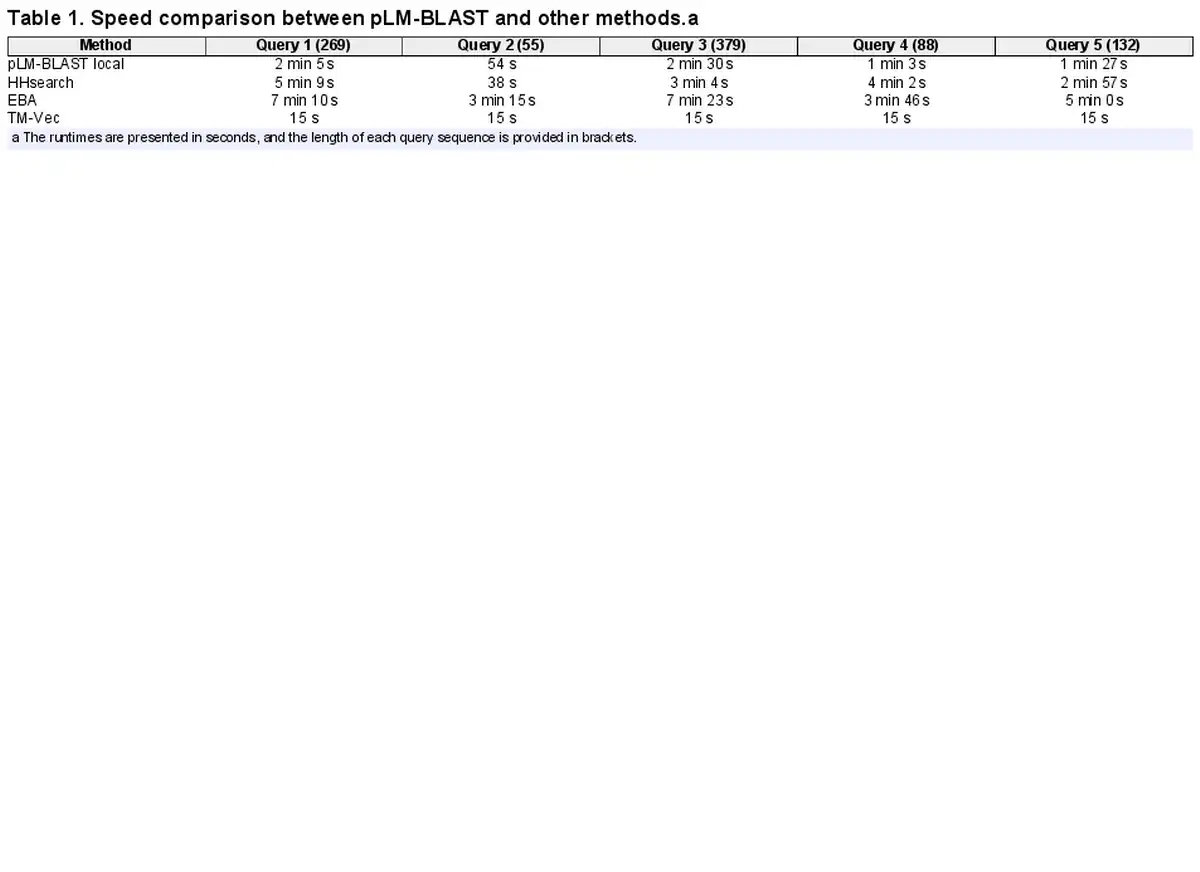

The results reveal (Table 1) that TM-Vec is the fastest method, despite being the worst performer in the homology detection benchmark (Fig. 2). pLM-BLAST, the second fastest method, is on average twice as fast as HHsearch and three times faster than EBA. The only case where HHsearch outperformed pLM-BLAST was a coiled-coil domain (query 2 in Table 1), where only a few homologous sequences could be detected. These results suggest that pLM-BLAST offers an optimal balance between accuracy and speed, with its performance being comparable to HHsearch (see Figs. 2 and 3), yet faster, and offering new insights into protein evolution, as discussed later. EBA, which delivered the best performance in the homology detection benchmark, was also the slowest method. This is probably because it lacks the pre-filtering step employed by pLM-BLAST (see Section 2.10).

Open multimedia modal

3.5 Potential to discover new homology relationships

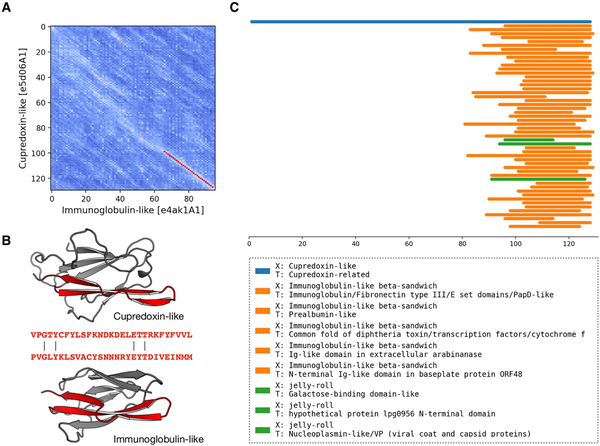

Given the ability of pLM-BLAST to detect homology (Fig. 2A), distinguish between homology and analogy (Fig. 2B), and provide high-precision alignments (Fig. 3), we speculated that some of the high-scoring connections between different H-groups of the same X-group, or even different X-groups, could reflect true homology.

In the benchmark of pLM-BLAST run in the local mode, the most number of connections between H-groups were found in the Alpha-beta plaits and Flavodoxin-like X-groups (see Supplementary File S2 for the full list of connected H-groups). Most of these intra-X-group matches were not detected by either HHsearch, which is expected since it was used to define homologous relationships in the ECOD database (Cheng et al. 2014), or EBA, which typically yielded low scores. We also detected connections between domains of different X-groups, often hinged on the presence of a subdomain-sized fragment (Alva et al. 2015^, Kolodny et al. 2021; Supplementary File S3); for example, between the P-loop, Rossmann, and Flavodoxin folds (Longo et al. 2020^, Kolodny 2021). Among these cases, we found a fragment conserved between domains of two different sandwich folds, namely cupredoxin (ECOD H-group 3156.1) and immunoglobulin (11.1, 5 A). Despite a global structural similarity (DALI Z-score = 2.7), the sequences of these two proteins could be aligned only over a short region corresponding to a beta-hairpin motif. This motif may represent an ancestral fragment that has been independently “decorated” with secondary structural elements, resulting in the two observed structures. In such a scenario, only the two beta-hairpin motifs would be truly homologous, while the overall structural similarity could be attributed to convergent evolution. Moreover, a homologous relationship between these two domains has been discussed previously (Gough and Chothia 2004^, Stevens 2008), and a pLM-BLAST scan of the entire ECOD database using a cupredoxin domain as a query revealed additional connections to other Ig-like domains (Fig. 5). Among them, we identified structures from different ECOD H-groups of the immunoglobulin-like beta-sandwich X-group (also see Supplementary File S3), suggesting homology in the region of the beta-hairpin motif. Interestingly, the matches also included a significantly different jelly-roll fold. Although the structural similarity between cupredoxin and jelly-roll folds is not as apparent as that of the of the cupredoxin and Ig-like folds, all share a Greek key motif in their core, lending credence to a hypothesis of a common origin.

Open multimedia modal

In our benchmark, we used HHsearch’s homology predictions as a ground truth and reference point for pLM-BLAST and other methods. However, it is important to note that homology cannot be definitively proven, and the benchmark is essentially a comparison of one hypothesis against another. While HHsearch is a well-established method, and its predictions have provided crucial insights in numerous studies, our results suggest that embedding-based methods such as pLM-BLAST could potentially detect homology beyond the boundaries defined by HHsearch.
