Hollow Fiber and Nanofiber Membranes in Bioartificial Liver and Neuronal Tissue Engineering

Hollow Fiber Membrane Systems for Bioartificial Liver

The use of HF membranes is widely recognized as feasible and attractive approach in the realization of functional engineered liver tissues and organs for medical, clinical, and preclinical practices, and for advanced research therapies and technologies. HF membranes represent a keystone in the design of bioartificial livers (BALs) to be used in clinical assist therapy as temporary extracorporeal supports, for patients awaiting orthotopic liver transplantation, or allowing the native or post-transplant liver to regenerate and recover. Polymeric membranes offer a 3D niche for liver tissue formation under dynamic and perfused condition, serving likewise as predictable in vitro models to be applied for assessing effects and toxicity of new drugs and therapeutic compounds alternatively or complementary to animal experimentation [Memoli et al., 2010]. Moreover, HF membranes made of biodegradable polymers act as promising materials for producing in vivo implantable liver tissues that undergo to a controlled, predictable, and non-toxic biodegradation and resorption without any surgical removal for the fully integration of the implanted cells into the host.

Polymeric membranes are notably suitable as supporting material in liver tissue engineering thanks to their intrinsic characteristics of efficiency and operational simplicity, high permeability and selectivity to molecular components, excellent stability under mild operational conditions, robust automation and easy scale-up. Furthermore, synthetic membranes can easily be mass produced, modulating their structural and physico-chemical properties for specific applications.

In the first bioartificial liver systems, HF membranes were used as selective barriers allowing solute exchange and the selective mass transport of nutrients and metabolites, and in the meantime the compartmentalization of cells (Fig. 1). Acting as selective barriers, membranes preserve hepatocytes from shear stress due to the perfusion, and ensure their immune-isolation avoiding adverse immune reaction by the patients’ hosting cells. Successively, considering that hepatocytes are anchorage-dependent cells, membranes were selected in order to perform a dual task: as supporting scaffold for cell adhesion, mimicking the natural ECM, which is important for the polarization of hepatocytes and organization in a 3-dimensional architecture, and as selective barrier, ensuring the transport of metabolites, nutrients, and specific products to and from cells. Several papers have demonstrated that membranes offer specific cues to hepatocytes for recapitulating the in vivo milieu of the natural microenvironments, driving and supporting 3-dimensional tissue formation as well as ECM protein deposition [De Bartolo et al., 2006; Memoli et al., 2007; Morelli et al., 2007; Piscioneri et al., 2011; Salerno et al., 2011, 2017, 2018; Salerno and De Bartolo, 2017].

Open multimedia modal

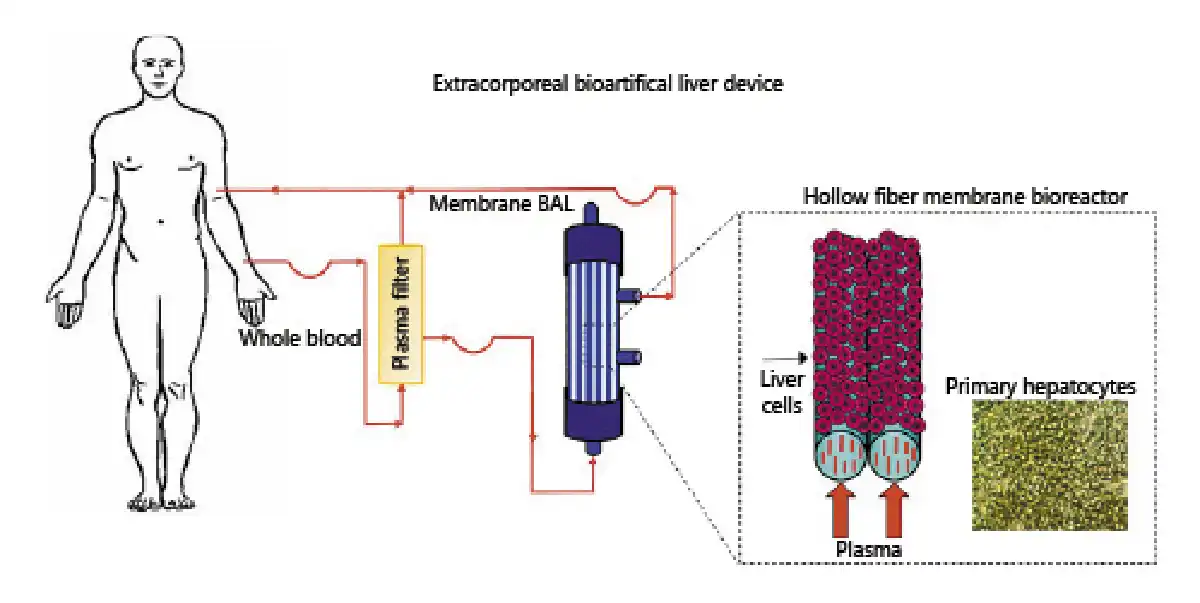

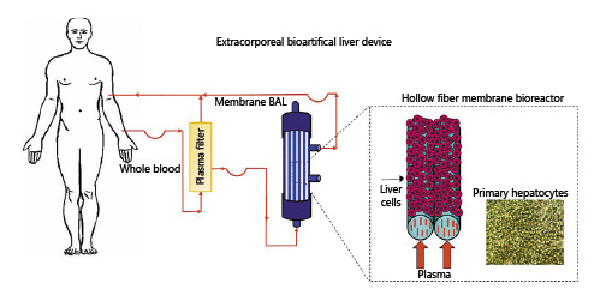

Most bioartificial livers were realized by parallel assembling HF membranes for the compartmentalization of hepatocytes in the shell of the fibers. One of the first bioartificial livers that was involved in phase I and II of the first larger clinical trial loaded hepatocytes in free suspension in the extracapillary space of a polyvinylchloride (PVC) HF membrane cartridge [Margulis et al., 1989]. The function and viability of these BALs was limited to few hours, considering that hepatocytes are adherent cells. To improve cell viability, other bioartificial livers maintained hepatocytes in the extracapillary space of parallel assembled HFs, encapsulated in agarose microdroplets [Shiraha et al., 1996], in adhesion to microcarriers [Demetriou et al,. 1995], entrapped in collagen gel [Naka et al., 1999] or in basement membrane matrix [Nagaki et al., 2001].

Few bioreactors compartmentalized liver cells in the lumen of parallel assembled fibers. In this device xenogeneic hepatocytes were entrapped in collagen gel in the lumen of PSf HF membranes with MWCO of 100 kDa, and the patient’s blood continuously recirculated in the extracapillary space. The membrane cut-off excluded the patient’s immunoglobulin and complement proteins from the intraluminal space, thus providing immunoprotection for the xenogeneic hepatocytes [Nyberg et al., 1993].

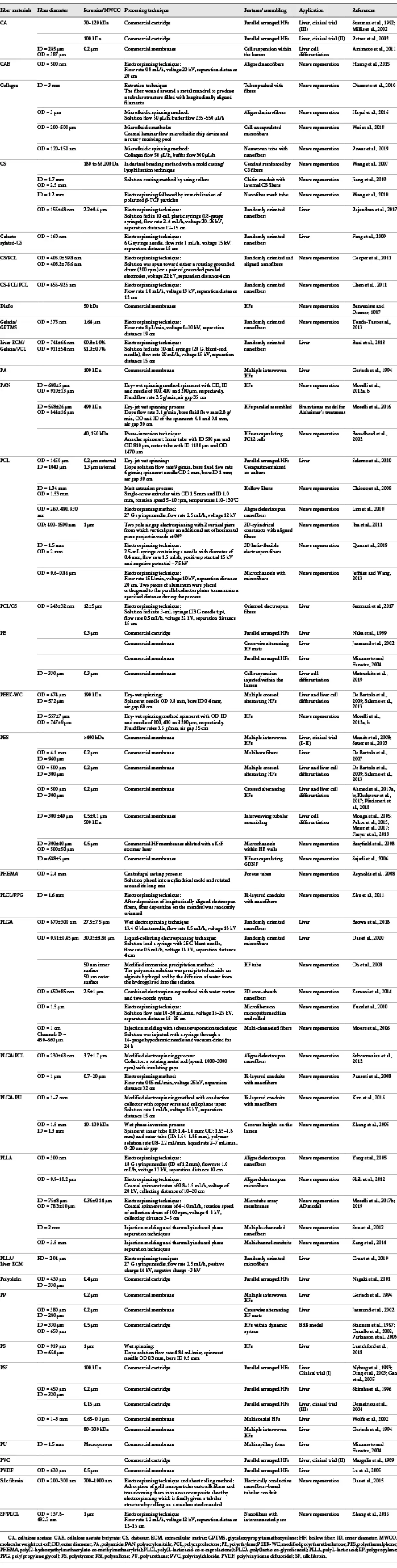

Several bioartificial livers in clinical trials employed PSf HF membranes (Table 1). The hepatocytes encapsulated in agarose microdroplets were maintained in the extracapillary space of PSf HFs with 0.2 μm pore size [Shiraha et al., 1996]. The TECA-Hybrid Artificial Liver Support System (TECA-HALSS) that employed HF cartridges from TECA Corporation, and that was tested in phase I clinical trials, was constituted of PSf HFs with 100 kDa cut-off, loaded with hepatocyte spheroids in its extra-fiber space [Ding et al., 2003; Gan et al., 2005]. PSf fibers of 0.15 μm pore size were employed in HepatAssist^TM from Circe Biomedical that was tested on a large scale in a phase III clinical trial, and that utilized hepatocytes attached to collagen-coated dextran microcarriers into the extracapillary space. The membrane pore size prevented hepatocytes and cell debris from passing through the fiber wall and entering the patient’s bloodstream that flows through the lumen of the fibers [Demetriou et al., 1995, 2004].

Another BAL that underwent extensive phase III clinical trials, the Extra-corporeal Liver Assist Device (ELAD, Vital Therapies, Inc.) consists of 4 cellulose acetate (CA) HF membrane cartridges with a cut-off of 70 kDa, that separates 200 g of hepatoblastoma cell line in the extracapillary space from the patient’s plasma flowing in membrane lumens [Sussman et al., 1992]. Successively, the device was improved by increasing the CA membrane cut-off (up to 120 kDa) together with the cell mass (up to 400 g for each cartridge), enhancing the oxygenation, and adding filters for preventing cancer cell migration risks [Millis et al., 2002].

HF cartridges of CA membranes with a nominal 100-kDa diffusive size cut-off constitute the bioreactor of the Excorp Medical bioartificial liver support system (BLSS), developed at the University of Pittsburg and involved in phase II trials. In this system, 70–120 g of hepatocytes were embedded in a collagen matrix in the extracapillary space. In contrast to other devices which perfuse patient plasma through the bioreactor, the BLSS perfused whole blood through the bioreactor, with significant advantages in affecting the patient outcome [Patzer et al., 2002].

With the purpose of increasing surface adhesion and paracrine cell communication, a peculiar configuration was realized in a membrane bioreactor in which primary human hepatocytes were compartmentalized in the lumen of modified PES multibore fibers. The fibers consisted of 7 capillaries (960 μm internal diameter) clustered in a single fiber (4.1 mm outer diameter) through a foamy porous (0.2 μm pore size) and highly permeable support structure, that conferred high stability and mechanical resistance to the hepatic tissue. Cells were cultured in the lumen of different capillaries that were in the same time in communication with each other thanks to the porous wall of the multibore fibers, and the diffusion of their secreted paracrine factors. The surface wettability and the high permeability allowed high adhesion and perfusion of primary human hepatocytes, and the device was used as in vitro model to investigate the liver detoxification of drugs and therapeutic molecules [De Bartolo et al., 2007a].

A similar configuration was realized by culturing hepatocytes in a multicapillary PU foam, consisting of a cylindrical block having many capillaries with internal diameter of 1.5 mm and forming a flow channel for the culture medium or plasma. In contrast to the previous multibore system, hepatocytes were inoculated in the microporous structure of the PU foam between the capillaries and formed spontaneously spheroids of 100–150 μm diameter [Mizumoto and Funatsu, 2004]. The same authors developed a liver lobule-like structure consisting of polyethylene (PE) HFs coated with ethylene vinyl alcohol, regularly arranged close together, among which hepatocytes were inoculated by using a centrifugal force, forming organoids [Mizumoto and Funatsu, 2004].

Different approaches adopted the membrane functionalization with the aim of improving the cell-material interactions. Some of these modifications employ the inclusion of biomolecules on the membrane surface which are commonly recognized by hepatocyte receptors. A poly(vinylidene difluoride) HF surface was modified with the immobilization of a galactosylated polymer [Lu et al., 2005]. PES HF membranes were functionally coated with a glutaraldehyde-crosslinked gelatin that provided an ECM-like environment for hepatocyte cell lines [Verma et al., 2018a]. Other modifications aimed to change physico-chemical membrane surface properties (i.e., polarity and wettability) to enhance the cell adhesion and functions [Salerno et al., 2009] or to improve the performance of liver assist bioreactors. A porous polystyrene HF membrane, developed by using microcrystalline sodium chloride as porogen, was subjected to an oxygen plasma surface treatment to reduce its hydrophobicity [Luetchford et al., 2018]. The biocompatibility and separation performance of PES HF membranes were improved by the incorporation of graphene oxide nanosheets decorated with hydrophilic zeolitic imidazole framework [Modi et al., 2018]. Phospholipid polymers, immobilized by a chemical condensation reaction on both the inner and outer surfaces of CA/phosphorylcholine co-polymer blended HF membranes, improved the water and solute permeability of membranes, as well as the functionality of hepatocytes [Ho Ye et al., 2006].

Considering that oxygen represents one of the most important limiting nutrients in membrane bioartificial liver, owing to its relatively low solubility and the high uptake rate of liver cells for systems with precarious vascularization, many efforts have been focused on the development of membrane devices with improved oxygenation. To this purpose, different systems included specific HFs devoted to the direct oxygenation of hepatocytes. An oxygenating HF bioreactor (OXY-HFB) was developed by alternating crosswise 2 mats of HF membranes with a constant distance of 200 μm porous PP oxygenating HF membranes (0.2 μm pore size) and PE heat exchange HF membranes. Oxygen requirements and temperature control were supplied through the fibers among which were primary porcine hepatocytes cultured at high cell density in direct contact with the perfused medium [Jasmund et al., 2002].

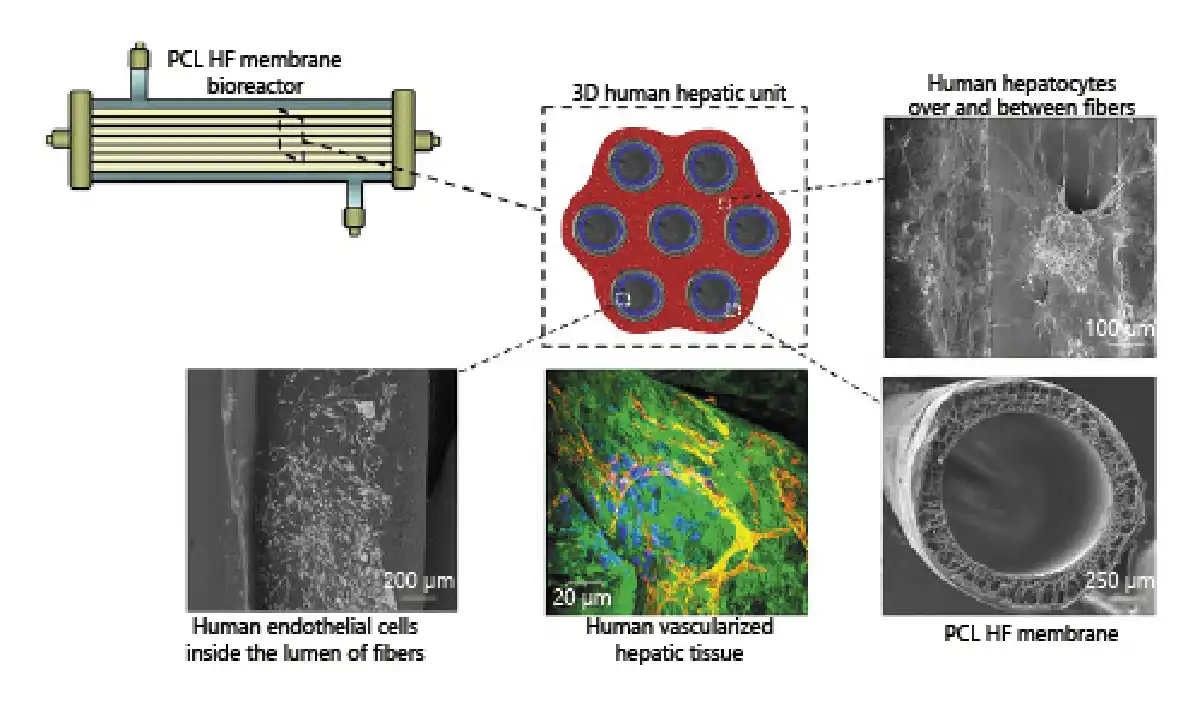

A more complex HF-based system was realized on the concept device developed by Gerlach et al. [1994], in which hepatocytes were cultured on the outer surface and between 4 independent interwoven capillary membranes, creating a network with a counter-current medium perfusion and internal oxygenation, using polyamide for medium/plasma inflow, PSf for medium/plasma outflow, hydrophobic PP for oxygen/carbon dioxide exchanges, hydrophilic PP for sinusoidal endothelial co-culture. This concept was applied in the Liver Support System (Charitè - Humboldt University, Germany) involved in a phase I clinical trial. An upgrade of the concept co-cultured the endothelial cells in direct contact with the hepatocytes in the extracapillary space created by 2 separate bundles of PES HF membranes with MWCO >400 kDa for the counter-current medium perfusion, and multilaminate HF membranes for low gradient gas exchanges. The device underwent phase I/II clinical trials [Mundt et al., 2008]. Successively, the interwoven HF bioreactor was integrated into a modular extracorporeal liver support system, and combined with DetoxModule for albumin dialysis [Sauer and Gerlach, 2002], and underwent phase I clinical trials loaded with human hepatocytes [Sauer et al., 2003]. Notwithstanding first encouraging results reporting on 8 patients successfully bridged to liver transplantation, modular extracorporeal liver support never progressed in controlled, randomized clinical trial required for regulatory approval. The miniaturized cell bioreactor, utilizing PES HF membranes with MWCO 400–500 kDa, was used as in vitro model to test liver detoxification of different drugs and their specific biotransformation pathway [Mueller et al., 2011; Hoffmann et al., 2012].

Liver acinar structure and physiological parameters were mimicked in a multicoaxial HF bioreactor, consisting of 4 concentric tubes with increasing diameter placed one inside the other. Hepatocytes were cultured under radial flow in a sandwich configuration in the space between the 2 innermost semi-permeable tubes, consisting of PSf HFs with 1 mm outer diameter (OD)/0.65 µm pore size, and 3 mm OD/0.1 μm pore size, respectively. Integral oxygenation occurred in the outermost compartment created by a third coaxial gas permeable silastic tube and the polycarbonate housing [Wolfe et al., 2002].

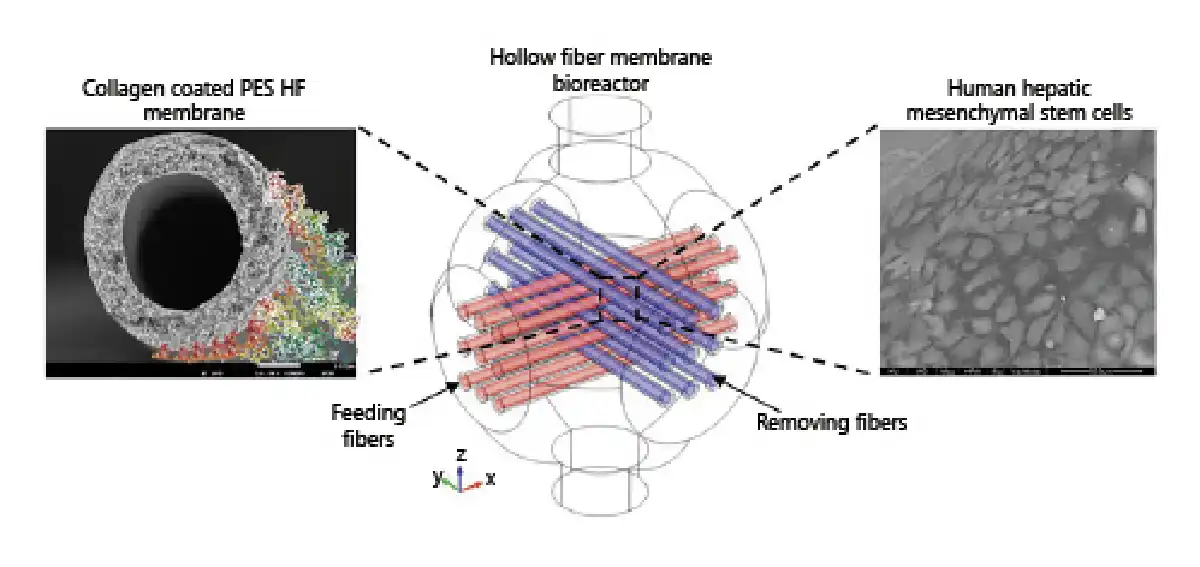

Another configuration based on the use of different fibers, was realized by cross assembling in alternating manner 2 bundles of HFs with specific physico-chemical, morphological, and transport properties for medium inflow and outflow, respectively, and creating an extracapillary 3-dimensional network for cell adhesion and culture, with high mass exchange and oxygenation through the cross-flow of the medium. A crossed HF membrane bioreactor was realized by assembling 2 HF bundles of PEEK modified with phthalide cardo group [Zhang et al., 1987] (obtained by solution polycondensation of phenolphthalein and dichlorobenzophenone; PEEK-WC) with a MWCO of 190 kDa, devoted to the feeding of oxygenated medium, and PES with 0.2 μm of pore size and high hydraulic permeance (J = 15.2 L/m²h·mbar), devoted to the removal of waste medium. The distance among the fibers was set on the basis of the modeled mass transport of nutrients and cell products. The optimized fluid dynamic ensured well mixing microenvironment in which primary human hepatocytes retained their differentiated morpho-functional behavior up to 19 days of culture [De Bartolo et al., 2009]. In another crossed membrane bioreactor, constituted of 2 bundles of only PES HF membranes, a 3D liver system was realized in which primary human sinusoidal endothelial cells, stellate cells, and hepatocytes were seeded sequentially in order to mimic the in vivo layers of cells. Cells self-assembled, forming tissue-like structures around and between the fibers, with hepatocytes forming aggregates, promoted by stellate cells, and surrounded by sinusoidal tube-like structures [Ahmed et al., 2017a]. Within the bioreactor, a proper oxygenation and supply of nutrients was provided to the cells ensuring a physiological amount that supported moreover the formation and long-term maintenance of functional human liver microtissues. Indeed, in the same bioreactor, human liver microtissue spheroids with uniform size and shape, and formed through self-assembly, were cultured, giving rise to larger microstructures around the fibers and forming liver-like tissue, which retained functional features up to 25 days [Ahmed et al., 2017b; Khakpour et al., 2017].

An innovative strategy was implemented with the aim to realize a vascularized liver tissue by creating vascular channels of endothelial cells that grows among a human liver tissue. To this purpose, biodegradable polycaprolactone HF membranes were synthetized by dry-jet wet phase inversion spinning method, tailoring operational parameters to obtain microporous interconnected pores along the membrane walls, and pores with mean diameter of 0.4 and 1.3 μm, on the external and internal membrane surface, respectively. A 3D compartmentalized co-culture was realized by loading primary human endothelial cells in the lumen of PCL HF membranes, and primary human hepatocytes in adhesion over and between the fibers, in the extralumen space (Fig. 2). Endothelial cells in a such configuration colonized the lumen of the PCL HFs forming vascular channels, and communicated with hepatocytes through their secreted factors that permeated across the microporous membrane walls. The developed PCL HF membranes together with fluid dynamic condition, created a physiologically relevant microenvironment with a large integration of the cells that retained functional activity and drug biotransformation up to 18 days, establishing a bottom-up tissue engineering approach to create 3D vascularized liver tissues [Salerno et al., 2020].

Open multimedia modal

Hollow Fibers to Induce Hepatic Differentiation

The efficacy of fiber membrane cell culture models for pharmacological and toxicological research is widely demonstrated. However, the development and validation of a functional liver tissue construct requires a large number of cells (high density culture) and experiments. This point arises one of the major concerns in the field of liver tissue engineering, which is related to the optimal cell source. Primary human hepatocytes still represent the gold standard for hepatic culture models but their scarcity engenders the need to find alternative hepatic cell sources for a consistent production of healthy functional hepatocytes. An attracting possibility for fiber-based liver tools is the use of progenitor/fetal liver cells and/or adult and pluripotent stem cells thanks to their intrinsic proliferative features and their ability to differentiate into hepatocyte-like cells [Zeilinger et al., 2016; Hosseini et al., 2019]. Although their use holds promising perspectives, the achievement of standardized differentiation methods is still a huge challenge. To face this unsolved issue, many attempts have been implemented within the scientific community by using different approaches. The various investigated methodologies share the common feature of acting toward the improvement of cell culture environment with the aim to enhance the differentiation potential. In this context, the use of fiber membranes satisfies different criteria reproducing a biomimetic environment that mimics their native niche. Within a fiber membrane system, it is possible to conjugate a proper chemical microenvironment with a proper spatial and temporal exposure to fundamental effectors, thus offering an ideal surrounding to the cells. With this aim, different HF membrane bioreactors have been adapted and their use revised to boost the differentiation of progenitor or stem cells toward the hepatic lineage (Table 1). Monga et al. [2005] investigated the use of fetal hepatocytes as an alternative cell source in membrane bioreactor. The mentioned device was composed of 3 independent sets of HF membranes assembled according to an interwoven arrangement with the formation of a dense network. The tight and repetitive membrane units’ disposition gave rise to 4 compartments with different functions. The perfusion of the fresh media was carried out by 2 sets of hydrophilic and microporous HF membranes, organized according to a countercurrent flow configuration and made up of PES with a molecular weight cut-off of approximately 500 kDa (inner diameter 300 μm ± 40 μm; wall thickness 100 μm ± 25 μm; pore size 0.5 μm ± 0.1 μm). The third bundle was made up of hydrophobic multilaminate HF membrane capillaries (inner diameter 200 ± 10 μm; wall thickness 42 ± 3 μm) for a proper gas supply, ensuring cell oxygenation and CO₂ removal. The extracapillary space hosted the fetal hepatocytes that were exposed to an appropriate mass and gas exchange thanks to a membrane arrangement that mimicked the hepatic vasculature. Fetal hepatic cells within the bioreactor acquired liver-specific functions and formed a liver tissue like between the HFs, where the formation of ribbon-like structures was also visible. The overall results highlighted how the system enabled differentiation but was able to keep also an undifferentiated population. The balance between differentiation and proliferation holds the potential of solving hepatic source issues [Monga et al., 2005]. The same 4-compartment membrane bioreactor was used to study its potential to enhance hepatic differentiation of human embryonic stem cells (hESCs) in comparison with traditional culture models. The authors combined a stepwise differentiation protocol with the 3D dynamic perfusion system of the membrane bioreactor; they further established a twin bioreactor set-up in which 2 devices were acting under the same operational setting but differing for the media composition. The twin approach had the aim to highlight the effects of the 3D perfusion on hESC expansion and differentiation, as a consequence of the optimal biochemical and topological stimuli offered by the HF membrane functions. Both bioreactor systems sustained cell proliferation, but a real efficient differentiation was better achieved in cells supplied with specific cytokine under 3D fiber membrane perfusion. Although the only action of the 3D perfusion conditions did not lead to a complete induction of hepatic maturation without the use of a proper pattern of specific growth factors, the tight capillary network provided an ideal environment with a proper mass exchange. This was corroborated by the enhanced effect of the cytokine pool in terms of hepatic maturation achieved in the bioreactor compared to results obtained in the traditional 2D systems [Miki et al., 2011]. The improvements of hESC differentiation toward the hepatic lineage by using a 3D HF membrane technology was also confirmed in the study of Sivertsson et al. [2013], in which the same bioreactor assembly provided encouraging data for the derivation of functional hepatocytes from an undifferentiated cell source.

The above-mentioned bioreactor was exploited for a further challenging investigation which consisted in the cultivation of total human fetal liver cells, thus comprising hepatic progenitor, hematopoietic, and endothelial populations. The experimental set-up had the aim to study the effects of a perfusion condition on their differentiation capacity. Liver cells exposed to the recirculation of the media were metabolically active showing a good differentiation state as demonstrated by the presence of mature hepatocytes and differentiated endothelial cells at the end of the culture. The synthetic activity typical of adult hepatocytes together with the endothelial expression of genes suggested that the bioreactor with 4 compartments represents a useful tool for the establishment of an organotypic culture system for an integrated research tool in regenerative medicine. The combined approach of the increased hepatic differentiation and enhanced gene expression of endothelial cells generated a reliable in vitro tool in liver tissue engineering [Pekor et al., 2015].

More recently, the same dynamic system was also assessed for its capacity to induce a better hepatic maturation of human induced pluripotent stem cells. The experimental outcomes actually emphasized the potential of the dynamic 3D culture by improving the formation of differentiated tissue in terms of morphological and functional behavior [Meier et al., 2017; Freyer et al., 2018].

Amimoto et al. [2011] developed a HF/organoid culture method to induce the differentiation of mouse embryonic stem cells toward the hepatic lineage. The experimental protocol comprised the use of 6 HF membranes usually employed for plasma separation. Membranes were constituted of cellulose triacetate with a pore size of 0.2 μm (inner diameter: 285 μm; outer diameter: 387 μm). Undifferentiated cells were inoculated and cultured within the lumen of the membrane. After cell loading, the membrane bundle underwent a centrifugation in order to promote cell aggregation and the formation of spheroid clusters. Inside the membrane lumen, the aggregate cells proliferated along the membrane axis and acquired liver-specific functions indicating that the HF/organoid culture is a promising approach for artificial liver device in which a sufficient differentiation rate is also achieved as demonstrated by the investigation of specific hepatic parameters [Amimoto et al., 2011].

A similar experimental paradigm was used by Matsushita et al. [2019] in which induced pluripotent stem cell (iPS) differentiation was achieved after cultivation in the lumen of HF membranes. Cells were inoculated in a bundle of 6 HF membranes composed of PE treated with ethylene vinyl alcohol for plasma separation (inner diameter 330 μm; thickness 50 μm; pore size 0.3 μm). The methodology allowed to perform high-cell-density culture of human iPS cells, in which a consistent part of the entire cell population acquired endodermal features with a trend 2-fold higher.

The use of a HF membrane system allows to control several specific aspects that play a pivotal role for cell growing and differentiation. Therefore, the multicompartment crossed HF membrane bioreactor, developed by De Bartolo and previously described for the long-term maintenance of adult hepatocytes [De Bartolo et al., 2009], was also used for the expansion and differentiation of rat embryonic liver cells in mature hepatocytes [Salerno et al., 2013]. The bioreactor created a homogenous environment for cell culture in which the concentrations of nutrients and metabolites were monitored and controlled, and differentiation signals were provided to the cells. Progenitor liver cells cultured into the bioreactor filled the entire membrane surface organizing themselves according to a typical 3-dimensional cord-like structure, thus resembling the liver tissue disposition. Within the membrane bioreactor cells acquired morphological and functional features typical of the mature liver cells. Indeed, cells shifted toward a polyhedral shape morphology as hallmark of differentiated liver parenchymal cells and acquired synthetic and biotransformation functions. The expression pattern profile of specific proteins provided further evidences that liver differentiation took place in the bioreactor: cells lost alpha-fetoprotein expression and gained the albumin expression which are markers of hepatoblasts and mature hepatocytes, respectively.

Considering the encouraging results and the fine tuning of the proper environmental surrounding at the cellular interface, the crossed HF bioreactor [De Bartolo et al., 2009] was used to move a step forward in stem cell differentiation approaches for the formation of in vitro functional liver tissue structures [Piscioneri et al., 2018]. The strategy of the work was to study the differentiation induction of human hepatic mesenchymal stem cells (Fig. 3). To create a more cell-friendly environment, the PES HF membrane underwent a surface modification with a thin coating layer of collagen, which ameliorated cell interaction and adhesion but did not affect the membrane properties in terms of selectivity. The preservation of the HF native permeability properties is quite relevant for reproducing the biomimetic delivery and exchange of oxygen and nutrients in the cell compartment, that strongly influence cell survival.

Open multimedia modal

The thin collagen layer together with the intrinsic HF membrane properties offer a whole ideal set of chemical and topographical stimuli to the cells, able to promote the acquisition of morphology, polarity, and specific functionality that characterize parenchymal liver cells. The membrane bioreactor performance in terms of oxygen delivery to the cells was evaluated through cellular oxygen consumption rate measurements [Curcio et al., 2014], highlighting a proper oxygen uptake within the bioreactor chamber, avoiding the formation of any hypoxic zone. Stem cells within the membrane system went through morphological changes and were positive for specific intracellular markers of mature hepatocytes. Glycogen storage, synthetic and detoxification functions were also positively assessed confirming the acquisition of a hepatic phenotype profile.

The overall results reinforce the evidences of the useful approach of membrane technology for the realization and implementation for novel investigational platforms.

Fiber membranes can serve as self-directing biomaterials to boost liver cell production for achieving the large-scale culturing and spontaneous differentiation. The huge membrane technology potential resides in its ability to establish a proper microenvironment that promotes cell adhesion and proliferation while directing the precise acquisition of target cell genotype and phenotype as evidenced by the recent progress and emerging techniques in biomaterial-assisted cell production. Moreover, the gathered investigational studies confirm that stem cells have a great potential in the creation of bioartificial liver devices.

Improvements in terms of quality control and efficient cell differentiation within a fiber-based liver device require a stable metabolic performance together with a predictable cell behavior. These challenging issues can be faced only through the constant seeking and synergistic integration of innovative auxiliary biomaterials and high degree of differentiation methods.

Nanofibers in Liver Tissue Engineering

Tissue development within a polymeric scaffold is driven by cell-matrix interactions that primarily affect cell migration, differentiation as well as the entire cell behavior. For an efficient tissue engineered approach that provides a proper cell support, it is necessary to reproduce the natural extracellular environment. This fundamental prerequisite is satisfied by the electrospinning technique whose nanofiber production creates a biomimetic scaffold with a defined intrinsic structure, from nano- to microscale surface cues, and controllable mechanical and physico-chemical properties. Nanofibrous mats mimic the ECM milieu by providing a 3D architecture, high interconnected porosity, great absorbance, and gas permeability to the cells. Nanofiber structure, thanks to its disposition, promotes the interaction with integrin-binding proteins which in turn boost cell attachment and the acquisition of the appropriate morphology.

Electrospun nanofibers can be used for different tissue applications thanks to their versatile properties and enormous potential for biomedical field applications [Zhang et al., 2018; Rasouli et al., 2019]. Here, some interesting approaches about the in vitro maintenance of functional liver cells within nanofiber scaffold systems are summarized (Table 1). An example of nanofibrous mats in liver tissue engineering technology is provided by Feng et al. [2009] through the development of galactosylated chitosan (GC) nanofibers for rat primary hepatocyte culture. The bioactive scaffold, prepared by electrospinning technique, presents an average nanofiber size distribution of 160 nm, which maintain the structural and mechanical integrity after aqueous treatment. The aim of the study was to validate the ability of GC nanofibers to enhance cell interaction and spheroid formation with the retention of specialized hepatic metabolic functions. The GC nanotopography not only enhanced high level of specific functions but also promoted a better cell-material integration when compared with flat substrates prepared from the same functionalized polymer. Indeed, on the GC nanofibers, hepatocytes formed flat spheroids firmly anchored to the nanofiber surface, while on the flat GC they can be easily removed. Spheroids formed on GC nanofibers were also metabolically more active. The study highlighted the optimal cell response to the integrated approach of nanofiber structures functionalized with galactose ligands, suggesting the great potential of nanofibrous surface for liver tissue engineering.

In another study, nanofibrous PLLA scaffolds were used for culturing primary rat hepatocytes for the realization of in vitro toxicological models [Bierwolf et al., 2011].

The scaffold was prepared through phase inversion technique giving rise to an interconnected macroporous network. The matrix architecture mimics the collagen fibrillary disposition within the ECM structure, enhancing cell seeding throughout the free space of the nanofibrous mats. The 3D scaffold well sustained hepatocyte growth which displayed a cytoskeletal structural integrity. Hepatocytes reorganized themselves along the macroporous interstices establishing cell-to-cell contacts which are fundamental for the right intercellular communication. Cells were stained for the tight junction marker ZO-1, whose visualization indicated that liver cells retained their polarized orientation. Other functionality tests as albumin production and glycogen storage corroborated the idea that PLLA nanofibrous scaffolds create a microenvironment that preserves hepatocyte-specific functions.

An electrospun nanofibrous scaffold of PCL and chitosan was fabricated and evaluated for its potential application in liver tissue engineering [Semnani et al., 2017]. The investigation led to the realization of blended PCL/chitosan nanofibers with excellent shape and orientation. Within the different types of nanofibers, the most suitable ones for the culture of mouse epithelial liver cells (Hepa 1-6) exhibited a diameter of 243 ± 32 nm, 79% porosity, and an average pore size of 12 ± 5 μm. The structural properties of nanofibers played a crucial role for cell colonization and infiltration, allowing the non-parenchymal liver cells to adhere along the scaffold surface. The matrix showed a good appropriateness in terms of biocompatibility and nontoxic response, validating its use for the realization of future tissue engineered liver constructs.

Hepatocyte in vitro cultures achieve successful results when defined factors are properly provided to the cells in terms of micro-environmental, physico-chemical, and mechanical stimuli. The simultaneous satisfaction of these vital factors is accomplished by using 3D scaffolds combined with ECM proteins. In this way the scaffold works as biomimetic matrix where cells can keep an in vivo-like morphology. A 3D liver tissue model for the long-term maintenance of functional hepatocytes was realized using a nanofiber scaffold made up of chitosan [Rajendran et al., 2017]. The electrospinning parameter set-up generated a highly porous scaffold with fibers randomly oriented. Structural analysis investigations evidenced a fiber diameter of 50–300 nm with an average value of 156 ± 48 nm. The mean pore size was estimated at 2.2 ± 0.4 μm. The scaffold was colonized with a simultaneous culture of fibroblasts and hepatocytes which helps to recover intercellular contacts. Prior to cell seeding, the scaffold was coated with fibronectin to reinforce the bioactive stimulus at the cellular interface with a consequent good cellular spreading. During the culture time both fibroblasts and hepatocytes preserved their morphology, showing a well-combined integration between them and within the scaffold mats. Cells migrated along the whole scaffold thickness as a sign of a good substrate interaction. The retention of the proper phenotype is closely correlated with the good metabolic performance of the co-cultured cells in the scaffold. Indeed, hepatocytes showed a growing albumin secretion during the whole culture time and high levels of CYP 450 A1 enzyme activity. The 3D hepatic co-culture system opened successful perspectives toward the development of nanofiber-based systems for drug testing and liver tissue engineering.

A peculiar characteristic of the electrospun nanofiber scaffolds is the large surface area compared to the volume which is synergistically combined to a good cell adhesion and colonization and an optimized supply of nutrients. The development of innovative tissue engineering strategies implies the continuous seeking of optimized techniques which improve scaffold stability and bioactivity. In this direction, Bual et al. [2018] developed a technique aimed to improve the bioactive performance of gelatin/PCL nanofibers blend by adding liver-specific extracellular matrix (L-ECM) derived from porcine liver in the bulk solution. Different scaffold compositions have been realized by varying the presence and the percentage of the 3 components: PCL, gelatin, and L-ECM nanofibers exhibited a smooth surface and high porosity with values ranging between 88.6 and 95.3%. PCL nanofibers had a good intrinsic mechanical stability and the blending with the 2 natural components sensibly improved also its hydrophilic properties, thus ameliorating also cell interactions at its interface. The matrices were seeded with primary hepatocytes. The L-ECM-modified PCL nanofibers sustained the maintenance of a proper hepatic morphology with the formation of a tissue-like structure, where also the specific functions were carried out and maintained within the culture time. Indeed, the introduction of tissue-specific signal molecules within the polymer structure provided a balanced microenvironment to the hepatic cells which also promoted further investigations related to the effects of the different tissue-specific ECM elements for nanofiber organ constructs [Bual et al., 2018].

For hepatic culture, scaffolds with a low density fiber packing are more appropriate in order to promote cell infiltration along the whole thickness. A typical sponge-like structure, highly porous and with less compact fiber structure, can be achieved through the wet electrospinning technique. Within the liver tissue engineering scenario this approach was used by Brown et al. [2018] who realized a nanofibrous scaffold made of PLGA. The resulting PLGA scaffolds were extremely porous with a mean pore size of 27.5 ± 7.5 μm (range 9.7–44.5 μm), recapitulating the same pore size of the decellularized liver ECM and thus facilitating hepatocyte distribution along and within the scaffold. While the wet electrospinning methodology strongly affects the pore size in a significant manner, it has a minor effect on the average fiber diameter which measured 870 ± 300 nm.

The porous nanofibrous matrix was further improved through chemical immobilization of 2 different ECM proteins, namely collagen I and fibronectin, both used at different working concentrations. The chemical modification did not modify the overall porosity. To validate the ECM-modified nanofiber matrices for liver tissue engineering, they were used for a 14-day experiment with hepatocytes, and results were compared with the ones obtained by culturing hepatocytes within the type I collagen-Matrigel sandwich.

Coupling the larger pore size of the nanofibers with the collagen incorporation in the mates’ structure improved the in vitro performance of the primary hepatocytes. Cellular state indicators of cell viability and above all the liver-specific functions were higher on cells cultured in the collagen-modified scaffold with promising future applications in the field [Brown et al., 2018].

In a similar work of Das et al. [2020], by using the same kind of membrane mentioned above, different ratios of collagen I to fibronectin were investigated and optimized in order to identify the most useful combination of the 2 proteins in sustaining hepatic cell functionality. Scaffolds after the protein chemisorption process maintained their porosity. The 3:1 ratio of collagen I to fibronectin was identified as the most suitable one, in terms of uniform distribution over the electrospun surface and the most efficient in supporting a proper liver cell functionality. Besides pointing out the importance of integrating multiple biomimetic stimuli within the structure scaffold, the study highlighted the importance of the optimal ratio of the incorporated signals to maximize cell interaction and behavior [Das et al., 2020].

In a recent work [Grant et al., 2019], the hepatic niche was successfully recapitulated in vitro by combining the electrospinning technique with the use of the full set of liver ECM proteins. The challenging approach consisted in the direct integration of the ECM proteins in the PLLA polymeric solution for the production of a bioactive electrospun scaffold. The incorporation of the entire ECM pool of proteins, derived from decellularized unused liver, was compared with integration of single ECM proteins as collagen, fibronectin, and laminin 521. The use of different proteins affected the mechanical characteristics of the scaffold. Nanofibers containing the whole ECM extract showed a Young’s modulus significantly higher in comparison to the scaffold with a single protein incorporation and with the scaffold made of polymer only. This difference moves the attention to a key aspect that influences cell behavior as the material stiffness, which must be considered for the specific application [Kennedy et al., 2017]. The scaffold fabrication process retained the protein bioactivity as demonstrated by the positive staining which localized the specific antigen. The different nanofibrous environments were validated using the TH-3 liver cells, by testing their viability and adhesion. Protein scaffolds maintained both cell survival and adhesion with the lowest cell percentage detected on the polymer-only scaffold. The different cell responses indirectly confirmed protein integration within the nanofibrous mats which positively affected cell behavior. Gene expression assessments, both for liver functional genes and ECM genes, confirmed that the most performant scaffold is the one in which the whole ECM extract was solubilized, corroborating that individual ECM elements are not able to fully recapitulate the native liver environment.

A 3-dimensional micro-nano multiscale fiber-based membrane system was recently developed by Verma et al. [2018b]. The fiber-based substrate presents a peculiar double membrane arrangement: a polymeric blend of PCL, chitosan, and gelatin bead-free nanofibers have been layered all over the outer layer of PES HF membranes. The set-up membrane preparation allows the concurrent combination of 2 membrane configurations, besides the advantage to have also the simultaneous presence of different polymers, whose appropriate combination allows to reach optimal membrane properties. The deposition of nanofibers on PES HF membrane improved its mechanical properties. Thanks to the large surface area of the outer nanofibers together with their increased ECM mimicking activity and the combination of 3 different bioactive polymers, the substrate showed great attitude for its use in the realization of bioartificial liver device. Indeed, HepG2 cells cultured on the nano-micro multiscale membrane, adhered over the surface maintaining also an efficient functionality, validating its further use for liver tissue engineering [Verma et al., 2018b].

The common feature of all these systems is their great promise in representing valuable tissue models for future tissue engineered applications and patient treatment, not only in the field of liver but also for a wide variety of tissues and organs being easily adaptable for different purposes.

Advanced Designs of Fiber Conduits for Nerve Guidance

To date, much progress has been made in all the aspects of making nerve guidance conduits including the design, materials, and fabrication techniques. Various spinning methods have been developed to produce micro- or nanoscale fibers, and the most commonly used methods among them are electrospinning and microfluidic spinning that can control the shape, surface features, and chemical composition of a single fiber. The 2D and 3D materials consisting of these fibers can provide chemical and physical cues to regulate neuronal behaviors including cell adhesion, proliferation, morphogenesis, and differentiation.

The success of electrospun fibers in the tissue engineering field resides in their capacity to offer the cells an environment that mimics the native ECM.

In vitro studies have reported on the development of electrospun fibers with a random orientation that could be employed as neuronal conduits.

Randomly oriented electrospun nanofibers of glycidoxypropyltrimethoxysilane were easily fabricated by electrospinning and supported the adhesion and proliferation of glial-like cells [Tonda-Turo et al., 2013].

Chen et al. [2011] designed cationic chitosan-graft-PCL/PCL hybrid electrospun nanofibers with random orientation for retinal tissue engineering. This material was characterized by high hydrophilic properties, and diameters ranged from 656 ± 53 nm to 925 ± 42 nm without bead formation, which favored the proliferation and differentiation of retinal progenitor cells toward neuronal lineage.

Another kind of randomly oriented electrospun nanofibrous membranes was prepared by Zhang et al. [2015] by blending silk fibroin and poly(L-lactic acid-co-ε-caprolactone) for retinal progenitor cell proliferation and differentiation.

Since the native peripheral nerve bundles are comprised of highly ordered neuronal cell-matrix assemblies, and the nano/submicron alignment of fibrous matrix plays an important role in the orientation of cellular growth, unidirectional aligned electrospun fibers are of great potential in nerve regeneration. The orientation of the fibers can direct the outgrowth of neurons, providing topographical guidance for the regeneration of axons and enhancing the diffusion of neurotrophic factors. The importance of micro- or nanofiber alignment for directing the growth of neural stem cells, neurons, and glial cells has been demonstrated through testing many aligned electrospun fiber membranes made of both natural and synthetic polymers [Yang et al., 2005; Lim et al., 2010; Wang et al., 2010; Cooper et al., 2011; Subramanian et al., 2012; Das et al., 2015].

Electrospun chitosan nanofibers showed particularly high potential for nerve tissue engineering. Schwann cells and PC12 cells grew highly oriented on the aligned chitosan-PCL fibers by following fiber alignment direction. Additionally, neurons showed enhanced upregulation of differentiation-specific gene expressions [Cooper et al., 2011].

Zamani et al. [2014] showed that PLGA-aligned nanofiber membranes enhanced the axonal regeneration in a transected spinal cord rat model. Despite the positive results, only limited studies have been conducted using electrospun fibers in spinal cord tissue engineering.

Many changes have been made in the electrospinning process to achieve aligned fibers that serve as guidance conduits for directing neuron alignment. Jha et al. [2011] used two pole air gap electrospinning to fabricate 3D cylindrical constructs composed of PCL fibers with nano-to-micron diameter, which have been deposited into highly aligned arrays oriented parallel to the long axis of the constructs. The architecture of these constructs provides thousands of potential channels that reconstructed 10-mm lesions in the rodent sciatic nerve.

Shih et al. [2012] used the bioelectrospinning method for realizing PLLA-aligned fibers incorporating cells and growth factors. This novel approach reduced the dimension of the guiding structural unit for maximum cell attachment and growth, but also effectively integrated all 3 major components of tissue engineering into one simple low-cost process.

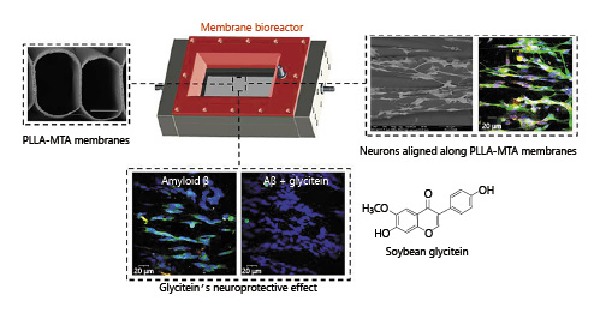

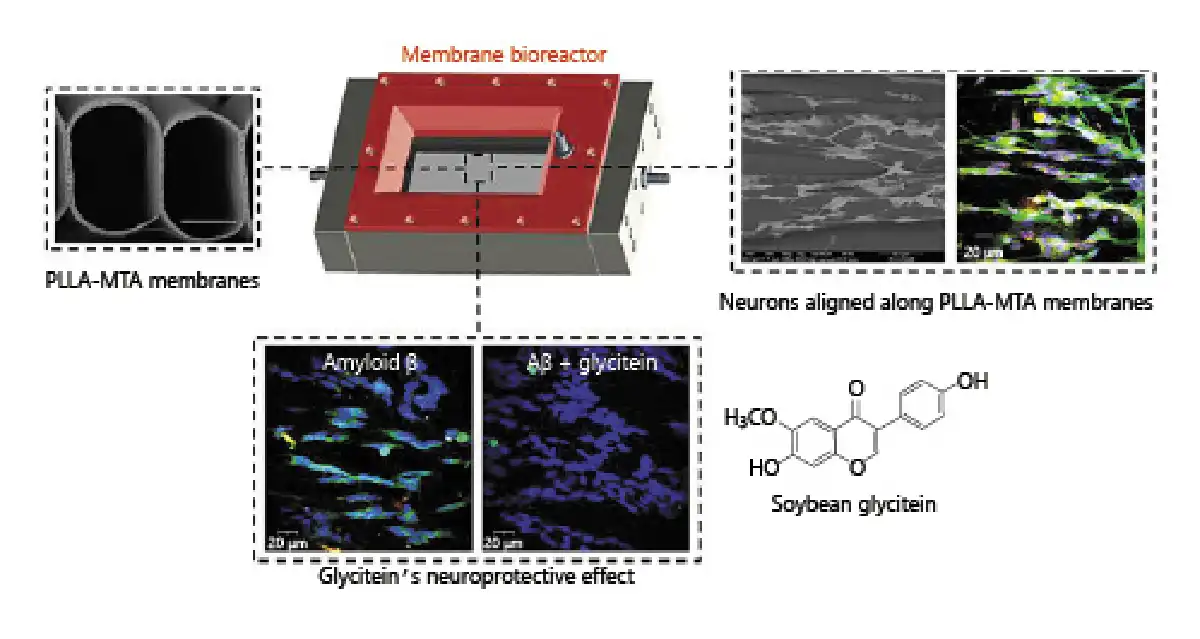

A novel advanced neuronal conduit device was realized by integrating PLLA highly aligned and packed micron-scale microtube array (MTA) membranes within a bioreactor that served as dynamic system to create a well-controlled microenvironment for neuronal growth [Morelli et al., 2017b]. PLLA-MTA membranes were prepared by a co-axial electrospinning process and besides a peculiar disposition possess a porous wall structure. The continuous one-by-one HF array structured along a single layer, provided a high surface area for cell adhesion. The overall structure gave rise to a 3D neuronal-like construct by combining in vitro culture of neuronal cells and PLLA-MTA membranes in a fully controlled bioreactor. The PLLA-MTA membrane bioreactor supported neuronal growth and differentiation and allowed the long-term maintenance of specific differentiated features. Neurites linearly extended along the membranes and the elongation of neuronal processes followed the orientation and the alignment of the membranes.

Several papers have reported that the combination of different cues including topographic, biochemical, and electrical stimuli, could improve nerve regeneration and functional recovery. The association of topographic and biochemical cues by encapsulating neural growth factors into the fibers can promote greater functional recovery of the peripheral nerves. Wang et al. [2012] compared aligned PLGA nanofibers with aligned PLGA nanofibers containing nerve growth factor (NGF) in their core for the regeneration of rat sciatic nerve defect. The study demonstrated that the combined effect of physical guidance cues and biomolecular signals provided by the PLGA-NGF fibers improved the peripheral nerve regeneration.

In addition to the imitation of native nerve structure, research on conductive polymers and electrical stimulation emerges as a relatively novel approach to increase neurite extension and axonal regeneration. Conductive biomaterials that are able to enhance neurite extension with low electrical stimulation, such as polypyrrole (PPy), polyaniline (PANi), and β-tricalcium phosphate (β-TCP), have been applied for the creation of nerve conduits. Aligned PLGA nanofiber coated with PPy supported the growth and differentiation of rat PC12 cells and hippocampal neurons [Lee et al., 2009]. PLLA-PANi scaffolds directed nerve stem cell differentiation [Prabhakaran et al., 2011]. A chitosan nanofiber mesh tube, on which electrically polarized β-TCP particles were immobilized, was employed to perform bridge grafting into sciatic nerve defects in Wistar rats. This approach created a suitable nerve conduit that induced functional recovery of both motor and sensory nerves after implantation, comparable with isografting [Wang et al., 2010]. More recently, other electrically conductive materials such as gold nanoparticles were incorporated into aligned electrospun silk fibroin/PEO nanofibers, and the resulting nanofiber-based nerve conduit promoted adhesion and proliferation of Schwann cells in vitro and showed good biocompatibility with surrounding tissue in vivo [Cooper et al., 2011].

The failure of nerve conduits could be attributed to luminal volume decrease, suture pull-out with traction during movement, conduit collapse, and swelling caused by material overdose. These problems can be solved by increasing the mechanical strength of the conduits and greatly improving the kink resistance while using less biomaterial. Quan et al. [2019] designed a new style of NGC with a helix-flexible structure, which was prepared using a simple electrospinning manufacturing process, and compared its mechanical properties and flexibility with those of conventional nerve conduits in order to address the problems of conventional conduits often mentioned in clinical feedback. In vivo tests in a rat sciatic nerve defect model indicated that this kind of helix-flexible nerve conduit could be used to repair peripheral nerve damage in a cross joint region with less tension during operation and easy postoperative rehabilitation.

Different approaches have been combined to realize advanced and very complex multi-structural nerve conduits (Table 1). Aligned electrospun fibers were placed on the surface of porous membranes and rolled and longitudinally glued that successfully regenerated injured nerve [Okamoto et al., 2010; Yucel et al., 2010].

Multi-channel design with external porous wall and intraluminal channels was a popular approach to design multi-structural NGCs. One of the first multiple-channel NGCs was prepared by injection molding with rapid solvent evaporation method that successfully promoted spinal cord axon regeneration [Moore et al., 2006].

A method combining injection molding and thermally induced phase separation techniques was developed to create multiple-channeled nanofibrous membranes that provided a beneficial luminal microenvironment that enhanced the attachment of PC12 rat neuronal cells, guided axonal orientation and regeneration [Sun et al., 2012] and successful differentiation of nerve stem cells into neurons [Zeng et al., 2014]. Jeffries and Wang [2013] used electrospinning to fabricate aligned fibrous mats and rolled them up to multi-channel NGCs. The advantage of this process compared to the ones fabricated using injection molding is the wall-thickness reduction, providing a greater area for tissue growth. In vitro studies demonstrated efficient cell infiltration and axonal elongation. A drawback of the fabrication method is its labor intensity and the poor repeatability and reproducibility.

Bi-layer electrospun nanofibrous nerve conduits with a combination of randomly oriented and aligned fibers were designed such that the aligned fibers on the inner layer provided topographical cues for neural alignment, while the randomly oriented fibrous outer surface provided mechanical strength to the scaffold [Panseri et al., 2008; Zhu et al., 2011]. Kim et al. [2016] made a slight modification of the bi-layer scaffold design. The inner surface was covered with highly aligned electrospun nanofibers to enhance the proliferation of neural cells, the central part of the tube was double-coated with randomly oriented nanofibers over the aligned ones, strengthening the weak mechanical strength of the aligned nanofibers.

Huang et al. [2015] prepared by electrospinning a novel fibrous conduit consisting of cellulose acetate butyrate (CAB) longitudinally aligned nanofibers with longitudinal nanogrooves on the fiber surface. In vivo results on rats using a sciatic nerve injury model indicated that the CAB fibrous conduits, thanks to the highly ordered secondary structure formed by surface grooves and an increase in the specific surface area, considerably enhanced nerve repair and regeneration.

Over the last decade, microfluidic technology has emerged as an advanced method for fabricating fibers at micro- and nano-scale, which are of high interest for biomedical applications, especially for the use in peripheral nerve repair. In a recent study, Haynl et al. [2016] produced by microfluidics highly aligned collagen fibers yielding minimum dry diameters of only 3 μm that allowed neuronal cell adhesion. Due to the low diameters and to the high tensile strength and Young’s modulus, which exceeded that of fibers produced in classical wet-spinning devices, this kind of fibers provided cell alignment and axon growth along the microfiber axes inaugurating potential applications in peripheral nerve repair.

Wei et al. [2018] combined a facile capillary-based microfluidic device and a rotary receiving pool to fabricate collagen hydrogel microfibers with highly oriented structure. In vitro culture suggested that these microfibers guided neural cell alignment along with fiber axon and promoted neuronal functions. Endothelial cells were introduced to construct a co-cultured microfiber model, which further facilitated the functional expression of neural cells due to the synergistic effect of both vascularized-like cells and neural-like cells. This approach not only has potential to engineer complex 3D tissues with highly oriented features, but also is effective in creating pre-vascularized tissue constructs.

An important limitation of commercially available NGCs is the length of the defect that can be treated and the lack of a suitable internal guidance. A recent study by Pawar et al. [2019] investigated a novel nerve conduit made of a recombinant spider silk nonwoven mesh tube that ensures structural integrity of enclosed, microfluidics-produced collagen fibers, allowing guidance of neuronal cells and their neurites and at the same time allows for sufficient nutrient exchange. The combination of both materials is highly beneficial, because the collagen fibers allow high neurite alignment and a biomimetic environment, whereas the nonwoven mesh tube ensures the structural integrity of the collagen fibers.

Fiber-Based Tools to Model Neurodegenerative Disease and Blood-Brain Barrier

Current challenges in neuronal tissue engineering include the creation of in vitro membrane-based models of brain tissue by combining neurons, membranes, and therapeutic molecules, which could be used as innovative approaches to investigate specific biological phenomena and/or pathological states. The main goal is to realize valuable models that can predict the results of in vivo studies and provide deriving therapeutic strategies enhancing nerve regeneration.

To date, several examples of fiber membrane-based tools have been employed as in vitro models of neurological diseases and blood-brain barrier (BBB), for testing pharmaceutical compounds in neurodegenerative diseases, and for studying the transport of therapeutic agents across the BBB together with BBB functions and properties, respectively (Table 1).

Recent improvements in cell cultures and membrane technology, such as bioreactor-based approaches, have led to the creation of advanced neuronal membrane systems, which provide investigational platforms for neurodegenerative diseases. Two different kinds of new membrane devices were developed for creating neuronal tissue engineered models for Alzheimer disease treatment [Morelli et al., 2016, 2019]. More specifically, one bioreactor comprised the use of PAN HF membranes [Morelli et al., 2016], and the other one consisted of highly aligned microfibers of PLLA prepared via electrospinning [Morelli et al., 2019]. In both cases, the fibers were assembled within a chamber in order to establish intraluminal compartments for medium flow and an extraluminal one for neuronal culture that communicate through the pores of the membrane walls. The low shear stress and 3D homogenous and stable in vitro microenvironment within these membrane bioreactors provided optimal conditions for the growth and differentiation of neural cells, as well as for the long-term maintenance of their metabolic functions. The creation of a 3D and functional neuronal tissue-engineered system was successfully achieved in vitro within both systems. Therefore, a PAN HF bioreactor and electospun PLLA fiber bioreactor were used as distinct in vitro models of Aβ-induced toxicity associated with Alzheimer disease to test the neuroprotective effect of carotenoid crocin, and isoflavone glycitein, respectively. Crocin inhibited the aggregation of Aβ that is responsible for the onset of neurodegenerative events associated with Alzheimer disease and thus protected neurons against Aβ-induced neurotoxicity [Morelli et al., 2016]. Also glycitein protected neurons from the events induced by β-amyloid aggregation, such as the production of ROS and the activation of apoptotic markers, and ensured the viability and maintenance of neuronal functions (Fig. 5) [Morelli et al., 2019]. Such kind of membrane bioreactors have great potential as investigational tools in preclinical research, contributing to expand the available in vitro devices for drug screening.

Open multimedia modal

During the last decades different kinds of BBB models have been realized by using different approaches, including static and dynamic platforms, as well as different cell types (astrocytes, pericytes, and endothelial cells), in order to mimic the growth environment of in vivo brain and the physiological environment of microvascular endothelial cells [Stanness et al., 1997; Parkinson et al., 2003; Cucullo et al., 2007]. In addition, cell cultures for BBB modeling have grown in structural complexity ranging from basic monocultures to multiple culture systems such as double and triple cocultures.

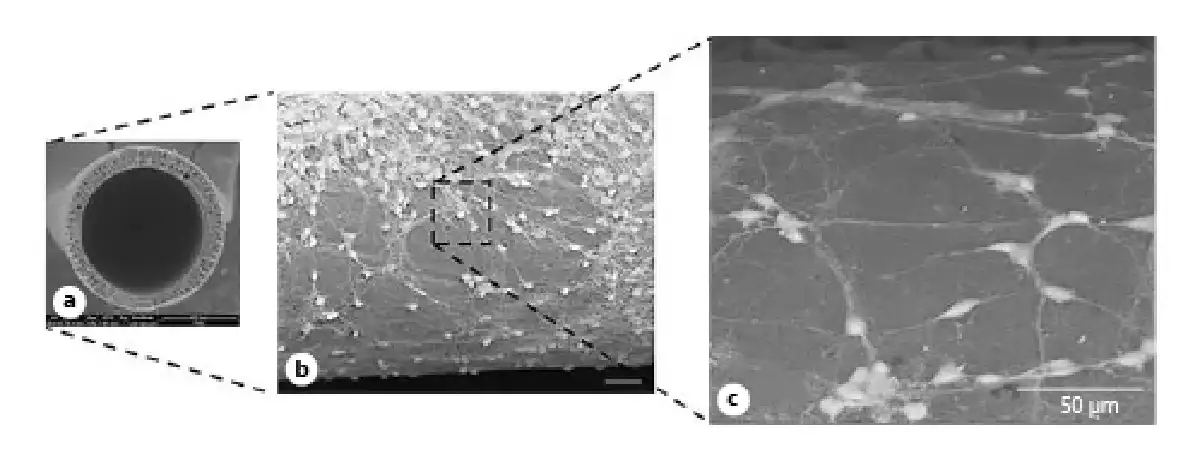

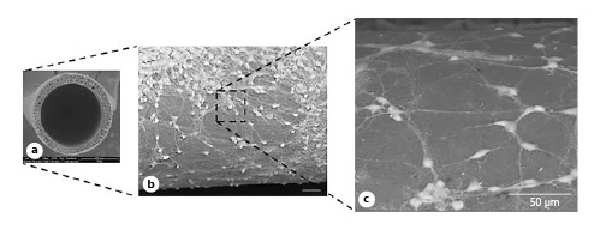

The most advanced in vitro BBB models are based on the use of dynamic HF apparatus characterized by a 3D architecture employed to explore BBB functions and to test the permeability and potential efficacy of drugs targeting the brain.

The functional core of the apparatus is represented by a bundle of microporous PP HFs, which enable coculturing of endothelial cells from various origins (animal or human, both primary cultures and cell lines) with astrocytes. Endothelial cells are seeded intraluminally in the HF membranes, whereas astrocytes are cultured on the extraluminal surface. The HFs are connected to a perfusion system that allows gas and nutrient exchange under the exposure of quasi-physiological pulsatile laminar flow. This provides the formation of a BBB that closely resembles the in situ one both functionally and anatomically [Stanness et al., 1997; Cucullo et al., 2002] and allows reproduction of multiple BBB properties that can help to address several general BBB questions. This HF dynamic BBB model has been used to investigate the effects of flow on endothelial cell metabolism and gene expression [Cucullo et al., 2002], demonstrating low permeability to intraluminal potassium and polar molecules (e.g., sucrose and other paracellular markers), high electrical resistance, and the expression of specialized transporters and ion channels [McAllister et al., 2001; Cucullo et al., 2002; Krizanac-Bengez et al., 2003]. The systems enable to demonstrate: (1) the key role played by the cross-talk between glial and endothelial cells in maintaining a viable BBB [Stanness et al., 1997], (2) the capacity of dipyridamole, a nucleoside transport inhibitor, to decrease the permeation of total purines, especially inosine, across the barrier and also improve specific BBB functions [Parkinson et al., 2003], and (3) the brain penetration ability of an antiepileptic drug, phenytoin [Cucullo et al., 2007].

In the last few years, the field of BBB in vitro modeling has seen many radical changes with the introduction of novel technologies and methods to improve existing models and develop new ones. Microfluidics technology has improved BBB modeling by providing tools with more realistic dimensions and geometries, and by exposing the endothelium to physiological fluid flow, and thus enables the real-time study of cells in a 3D engineered physiological microenvironment [Booth and Kim, 2012].
